手动衬氟胶阀
手动 |
J41F3 |
角式 |
J441F3 |
J41F46 |
J441F46 | ||
气动 |
J641F3 |
电动 |
J941F3 |
J641F46 |
J941F46 |
设计标准 |
GB12233/GB12233 |
结构长度 |
GB12221 |
法兰标准 |
JB/T79-94 |
GB9113.1-26 | |
检验试验 |
GB/T13927 |
驱动方式 |
手动、电动、气动 |
序号 |
零件名称 |
灰铸铁 |
碳钢 |
不锈钢 |
超低碳不锈钢 | ||
Z |
C |
P |
R |
Pl |
R L | ||
1 |
阀体、阀盖 |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
2 |
阀瓣、阀杆 |
35 |
1Cr13 |
1Cr18Ni9 |
1Crl8Ni12M02Ti |
00Cr18Ni10 |
00Cr17Nil4M02 |
3 |
活节螺栓 |
35 |
35 |
1Crl7Ni2 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr17Ni2 |
4 |
衬里层巾司座 |
FEP(F46)PCTFE(F3)PTFE(F4)PFA(可溶性聚四氟乙烯)PO(聚烯烃) | |||||
5 |
填料 |
PTFE(F4) | |||||
6 |
填料压盖 |
WCB |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
7 |
阀杆螺母 |
ZCuAll 0Fe3 | |||||
8 |
螺栓 |
35 |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
9 |
螺母 |
45 |
45 |
0Cr18Ni9 |
0Crl8Ni9 |
0Crl 8Ni9 |
0Cr18Ni9 |
10 |
手 轮 |
HT200 |
HT200 |
WCC |
WCC |
WCC |
WCC |

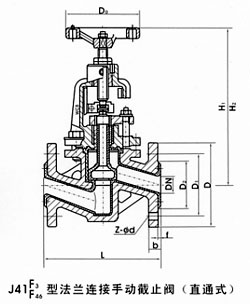

七、J41F46衬氟截止阀主要外形和连接尺寸 |
公称通经 |
L |
D |
D1 |
D2 |
f |
b |
Z-φd | |
DN(mm) |
NPS(inch) |
PN1.0MPa | ||||||
15 |
1/2 |
130 |
95 |
65 |
45 |
2 |
14 |
4-φ14 |
20 |
3/4 |
150 |
105 |
75 |
55 |
2 |
16 |
4-φ14 |
25 |
1 |
160 |
115 |
85 |
65 |
2 |
16 |
4-φ14 |
32 |
11/4 |
180 |
135 |
100 |
78 |
2 |
18 |
4-φ18 |
40 |
11/2 |
200 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
50 |
2 |
230 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
65 |
21/2 |
290 |
180 |
145 |
120 |
3 |
20 |
4-φ18 |
80 |
3 |
310 |
195 |
160 |
135 |
3 |
22 |
4-φ18 |
100 |
4 |
350 |
215 |
180 |
155 |
3 |
22 |
8-φ18 |
125 |
5 |
400 |
245 |
210 |
185 |
3 |
24 |
8-φ18 |
150 |
6 |
480 |
280 |
240 |
210 |
3 |
24 |
8-φ23 |
200 |
8 |
495 |
335 |
295 |
265 |
3 |
26 |
8-φ23 |
250 |
10 |
622 |
390 |
350 |
320 |
3 |
28 |
12-φ23 |
300 |
12 |
698 |
440 |
400 |
368 |
4 |
28 |
12-φ23 |
350 |
14 |
787 |
500 |
460 |
428 |
4 |
30 |
16-φ23 |
PN1.6MPa | ||||||||
15 |
1/2 |
130 |
95 |
65 |
45 |
2 |
14 |
4-φ14 |
20 |
3/4 |
150 |
105 |
75 |
55 |
2 |
16 |
4-φ14 |
25 |
1 |
160 |
115 |
85 |
65 |
2 |
16 |
4-φ14 |
32 |
11/4 |
180 |
135 |
100 |
78 |
2 |
18 |
4-φ18 |
40 |
11/2 |
200 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
50 |
2 |
230 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
65 |
21/2 |
290 |
180 |
145 |
120 |
3 |
20 |
4-φ18 |
80 |
3 |
310 |
195 |
160 |
135 |
3 |
22 |
8-φ18 |
100 |
4 |
350 |
215 |
180 |
155 |
3 |
24 |
8-φ18 |
125 |
5 |
400 |
245 |
210 |
185 |
3 |
26 |
8-φ18 |
150 |
6 |
480 |
280 |
240 |
210 |
3 |
28 |
8-φ23 |
200 |
8 |
495 |
335 |
295 |
265 |
3 |
30 |
12-φ23 |
250 |
10 |
622 |
405 |
355 |
320 |
3 |
32 |
12-φ25 |
300 |
12 |
698 |
460 |
410 |
375 |
4 |
34 |
12-φ25 |
PN2.5MPa | ||||||||
15 |
1/2 |
130 |
95 |
65 |
45 |
2 |
16 |
4-φ14 |
20 |
3/4 |
150 |
105 |
75 |
55 |
2 |
16 |
4-φ14 |
25 |
1 |
160 |
115 |
85 |
65 |
2 |
16 |
4-φ14 |
32 |
11/4 |
180 |
135 |
100 |
78 |
2 |
18 |
4-φ18 |
40 |
11/2 |
200 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
50 |
2 |
230 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
65 |
21/2 |
290 |
180 |
145 |
120 |
3 |
22 |
8-φ18 |
80 |
3 |
310 |
195 |
160 |
135 |
3 |
22 |
8-φ18 |
100 |
4 |
350 |
230 |
190 |
160 |
3 |
24 |
8-φ23 |
125 |
5 |
400 |
270 |
220 |
188 |
3 |
28 |
8-φ25 |
150 |
6 |
480 |
300 |
250 |
218 |
3 |
30 |
8-φ25 |
